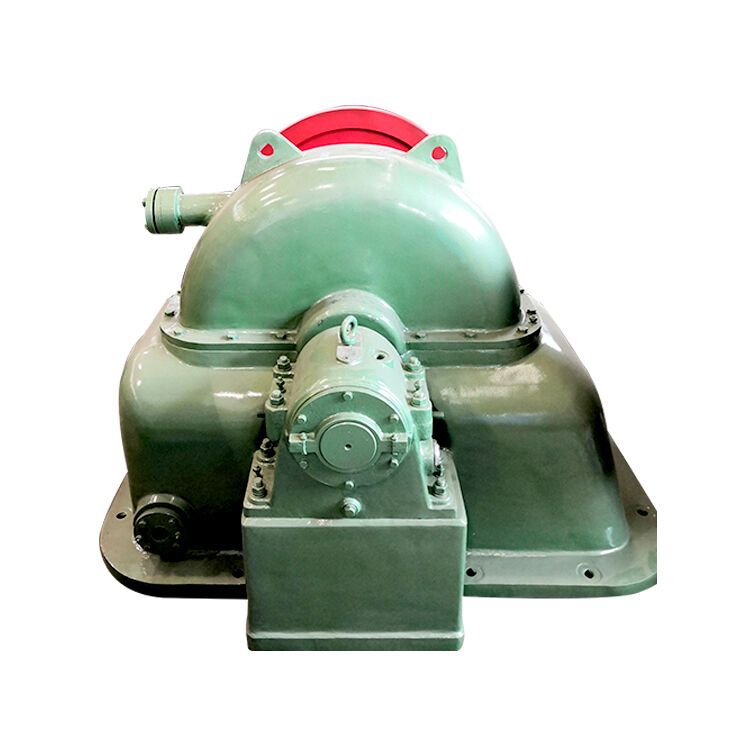

Double Cup or Split Bucket Pelton Hydro Turbine with Stainless Steel Nozzle Ring and Up to 90% Efficiency for High-Pressure Applications
Подробная информация о продукте:
| Фирменное наименование: | Wawushan |
| Сертификация: | ISO9001 |
| Номер модели: | CJA-202515 |
Оплата и доставка Условия:
| Minimum Order Quantity: | 1 |
|---|---|
| Цена: | 50000 |
| Упаковывая детали: | Стандартный |
| Delivery Time: | 6 Months |
| Payment Terms: | L/C |
| Supply Ability: | 100 Set Per Unit |
|
Подробная информация |
|||
| Эффективность: | До 90% или выше | Тип: | Импульсная турбина |
|---|---|---|---|
| Мощность мощности: | 1-200 MW | Кольцо для насадки: | Нержавеющая сталь 0Cr13Ni4Mo (CA6NM) |
| Уровень шума: | низкий | голова дизайна: | 200м-600м |
| Скорость потока: | 1-200 M3/s | Голова: | 50-1000 m |
| Выделить: | Double Cup or Split Bucket Pelton Hydro Turbine,Stainless Steel Nozzle Ring Water Jet Turbine,Up to 90% Efficiency High-Pressure Turbine |
||
Характер продукции
Pelton Hydro Turbine Overview
The Pelton Hydro Turbine is a highly efficient and robust solution designed for harnessing hydro energy in high-head water sources. Renowned for exceptional performance in converting kinetic energy into mechanical energy, this turbine is ideal for a wide range of hydroelectric power generation projects. From small-scale installations to large power plants, the Pelton Hydro Turbine delivers reliable and consistent energy output, making it a preferred choice among engineers and energy producers worldwide.
Key Features
- Product Name: Pelton Hydro Turbine
- Nozzle Ring made of Stainless Steel 0Cr13Ni4Mo (CA6NM) for enhanced durability
- Rated Speed: 750r/min ensuring optimal performance
- Power Capacity ranging from 1 MW to 200 MW to suit various energy needs
- Design Head between 200m and 600m for efficient energy conversion
- Bucket Design: Double Cup or Split Bucket options available
- Operates as a Water Impulse Turbine, utilizing high head water flow
- Incorporates the Pelton Water Wheel design for maximum hydraulic efficiency
- Complements Axial-Flow Turbine systems in hydropower setups
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Pelton Hydro Turbine |
| Noise Level | Low |
| Head | 50-1000 M |
| Efficiency | Up To 90% Or Higher |
| Bucket Design | Double Cup Or Split Bucket |
| Design Head | 200m-600m |
| Water Head | 100m-800m |
| Nozzle Ring | Stainless Steel 0Cr13Ni4Mo (CA6NM) |
| Nozzle Number | Dual Nozzles |
| Flow Rate | 1-200 M³/s |
Applications
The Wawushan Pelton Hydro Turbine (model CJA-2025) is designed for efficient energy generation in various hydroelectric power applications. Certified with ISO9001 and manufactured in China, this turbine combines advanced engineering with reliable quality assurance.
This high-performance impulse turbine is particularly effective in mountainous regions with steep river gradients and remote power generation projects requiring reliable, sustainable energy sources. Its robust construction and precision bucket design make it ideal for continuous operation under demanding high-pressure conditions.
Customization Options
Model: CJA-2025
Price: $50,000 per unit
Minimum Order: 1 set
Delivery Time: Approximately 6 months
Payment Terms: Primarily L/C
Supply Capacity: 100 sets per unit time
Support and Services
Our dedicated technical team provides comprehensive support services including installation guidance, operational training, maintenance procedures, troubleshooting assistance, and performance optimization.
Services include detailed product documentation, remote diagnostics, periodic inspections, and customized training sessions. Our engineering team is available for upgrades, retrofits, or modifications to adapt to changing operational requirements.
Technical Advantage: The Pelton Hydro Turbine operates as an impulse turbine, distinguishing it from reaction hydro turbines. This design allows exceptional efficiency and durability in high-head, low-flow conditions where reaction turbines may not perform optimally.
